Pro O2 Analyzer Panel Mount Remote - 9460
Pro O2 Analyzer Panel Mount Remote - 9460

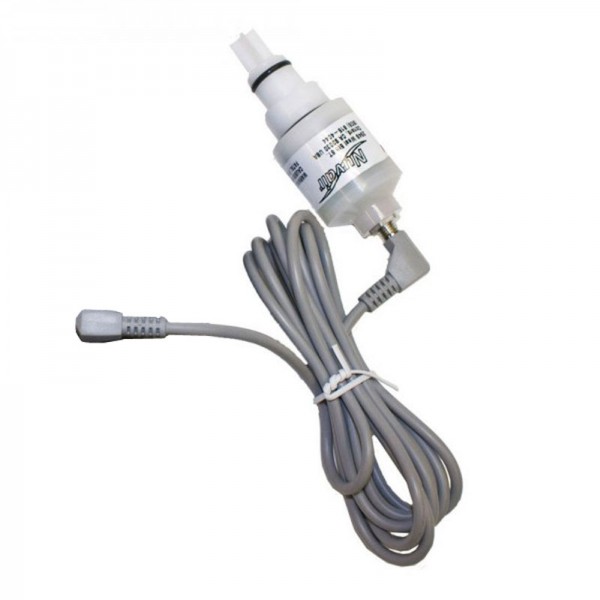

Pro O2 Analyzer Panel Mount Remote



Price on request

SKU: 9460 Categories: ,


Extremely accurate and stable, the Nuvair Pro O2 Remote Panel Mount is preferred by commercial, military, technical, and even advanced recreational divers. The remote panel mount version is ideal for inline sampling. Mounts flush on an enclosed compressor.

Replacement Sensors

  • Sensor Replacement 9506

Specifications

  • Maximum Gas Flow Rate: .5-2 liter/min. (~ 1 bar)
  • Display Accuracy: +/- 1%
  • Sensor Type: Electrochemical
  • Expected Cell Life (Room Air & Temp): 24 months
  • Range: 0-100% Oxygen
  • Response Time: less than 12 seconds
  • Operating Temperature: 41° to 86°F (5° to 30°C)
    Will work outside this range with decreased accuracy
  • Storage Temperature: -4° to 122°F (-20° to 50°C)
  • Operating Humidity: 0-100% RH, Non-Condensing
  • Power: 9 Volt battery or 110/230V Li-Ion Option
  • Dimensions (HxWxD): 5 1/2 x 4 x 2in (14 x 10.1 x 5 cm) – Panel Mount
  • Weight: 11 ounces (312 grams) – Panel Mount
