Quincy 5120 Kubota Diesel

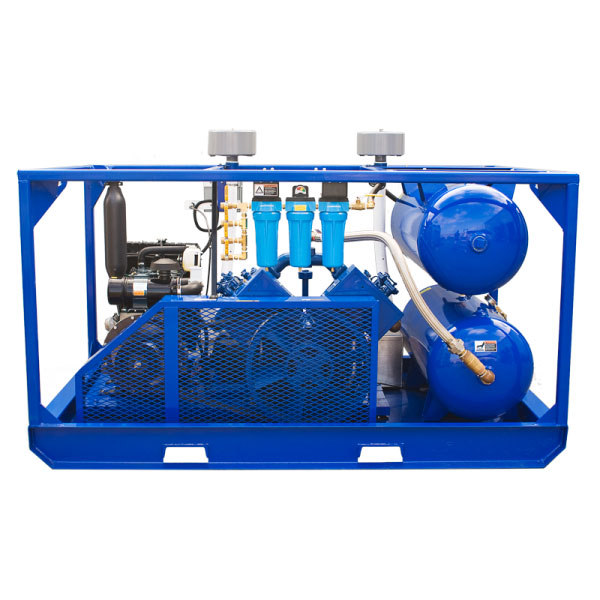

Breathing air and /or Industrial air the Quincy 5120 diesel framed in package provides 88.5 CFM @ 175 PSI. Years of proven dependability as an industry work horse this is the standard in many dive companies and industrial uses word wide. Our Kubota package includes a 5120 compressor block with head unloaders and a 35HP Kubota D1703-M diesel engine with belt guard mounted in a powder coated steel frame with dual 60 gallon tanks, fork lift slots and 4 point lifting eyes.
Price on request
Features
- Water Cooled Kubota D1703-M Diesel Engine
- Hayes PTO and Bearing Block
- Full Instrument Panel
- 15 Gallon Fuel Tank
- Air Cooler & (2) ASME Rated 60 Gallon Volume Tank
- Hankinson Filtration to 0.003 PPM Oil Vapor
- 4 Diver Manifold
- Simple to Operate, Reliable and Versatile
- Heavy Duty Powder Coated Offshore Frame with Vibration Isolated Inner Frame
- Primary Fuel Filter
Options
- Low Pressure Regulator for Down Stream Pressure
- CO and/or O2 Analyzers
- Audible and Visual High Temperature Alarm
- Low Oil Shutdown
- Canvas Cover
- Air Start or 12 Volt Electric Start
- Low Air Pressure Alarm
- Low pressure Auto Switch to Emergency Back-Up
Specifications
- Charging Rate: 88.5 CFM @ 175PSI (2500 L/Min @ 12Bar)
- Diesel Engine Power: 37 brake HP @ 2800 RPM
- Max Operating Pressure: 200 PSI (14 Bar)
- Number of Stages: 2
- Lubrication: Pressure Lubrication
- Dimensions (LxWxH): 96 x 55 x 53 in (244 x 140 x 135 cm)
- Weight: 3100 lbs (1406 kg)
- Air Quality: Grade “D”
